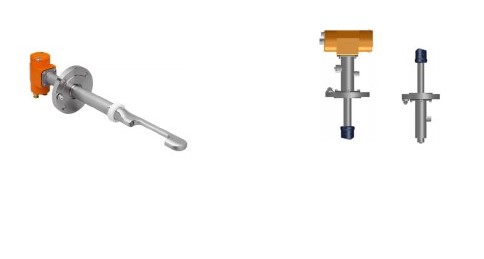

FLOWSIC100 Flare

Product family FLOWSIC100 Flare

Reliable gas flow measurement in flare gas applications
• High-resolution measurement and short response time
• Innovative sensor design for very high gas velocities and gas temperatures up to 280 °C
• Optimal signal transmission even under atmospheric pressure
• Detached installation of the control unit up to 1,000 m away
• Single and multi-path configuration, opt. Probe version
• Zero point test in the field according to factory standard
• Control cycle for automatic self-diagnosis / signal optimization

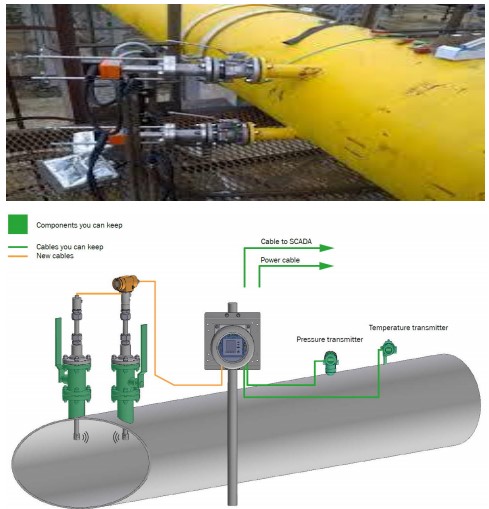

FLOWSIC600 INSTALLATION

• Description: FLOWSIC100Flare is an Ultrasonic flow meter used to measure the Waste Hydrocarbon gases specially H2, CO2, N2 etc. Both 1 path & 2 path versions are available.
• Probe version & Cross duct version are available.
• High velocity signals are used to overcome any cross interference.
• Rugged Transducer ensures satisfactory performance at extreme conditions up to 180 m/sec.
• No effect of changing Gas composition & corrosive gas components.
• Measures the gas velocity up to 120mtr/sec.
• Ex-approvals: ATEX/ IECEx/ CSA.
• Gas temperature: Up to 280°C.
• Measuring span: 4000:1.
