FLOWSIC600-XT

Product family FLOWSIC600-XT

The perfect match
• User-friendly product family
• Automatic correction of pressure and temperature effects
• Power-In Technology™ for reliable backup operation
• Intelligent application diagnostics with i-diagnostics™
• Extendable with flow computers per connect-and-go

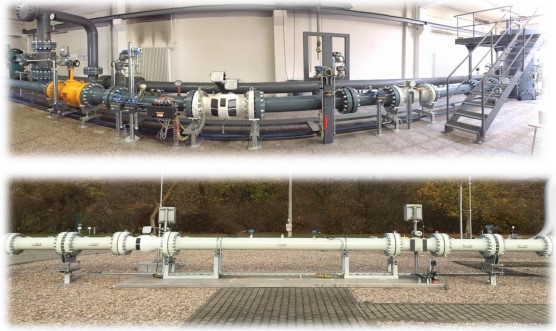

FLOWSIC600 INSTALLATION

• Description: FLOWSIC600XT is a Gas Flow meter with 4, 4+1, 4+4 & 8 path measurement variants.
• Size: 3” to 56”.
• Flow range: 5 to 120,000 m3/hr.
• Gas Temperature: Up to + 180°C and optionally up to + 280°C.
• Operating Pressure: Up to 450 bar.
• Conformities: OIML R 137- 1&2:2012
• Ex-approvals: ATEX/ IECEx
• Enclosure: IP 66/ IP 67.
• Output: 1 AO, 4 DO with MODBUS & Ethernet and HART facilities
• Low Power Consumptions: 0.45 to 2.45 W
• Application: Mid & Downstream Gas Transmission, Storage & distribution both as Custody Transfer & Check meter
